This article was updated to support v11.7.8 and newer of Goliath Performance Monitor.

Prerequisites

• Versions 6.0 to 7.6 supported
  • Windows 7-10 (Desktop), 2008 R2 – 2016 (Server)
  • Only English Windows installations supported
• Service Account with Read Only Admin Rights within the Horizon Admin Console and Local Admin Rights on the Connection Server
• PowerShell v3.0 or newer required on the Connection Server. PowerShell v2.0 or newer required on the App Servers/Virtual Desktops
• Full Microsoft SQL suggested for full implementations of Goliath Performance Monitor
• VMware vSphere Hypervisor monitoring configured already
• Support for real-time process metrics can be resource intensive requiring us to determine viability that we would test in the implementation.

Monitoring Configuration

These below steps will take you through the configuration process to begin monitoring your VMware Horizon environment(s). Please note, these instructions are dependent VMware vSphere Hypervisor monitoring being completed. If this has not been done, please do so before proceeding.

1. Navigate to the ‘Configure’ tab and then the ‘Inventory’
2. At the bottom of the page, click the ‘Manage Agents’
3. Select the VMware Horizon VDI, RDSH servers, and the connection servers in which you’d like to install the agent on.
4. Once selected, click the ‘Deployment Settings’ button and enter administrative credentials (domain\user) in order to access the server to install the agent. Click ‘Ok’ when ready.
5. Click the ‘Install/Update Agents’ bottom at the bottom of the screen.
6. Depending on the number of agents that are being installed or updated, the process may take about 2-10 minutes to complete. You will be prompted when the installation/update is complete.

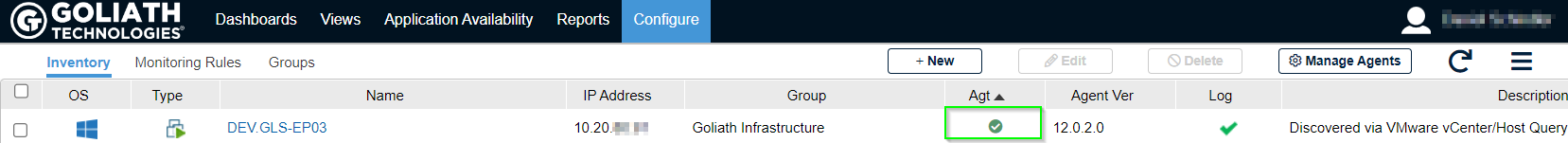

7. Once the installation is complete, click the ‘Close’ button to return to the Inventory page. Here, you can confirm the agents are connecting in by confirming that there is a green box in the ‘Stat’ column for that machine. Please note, you may need to refresh the screen after a few minutes in order to see page updates.
8. Once all of the agents are connected, select the VMware Horizon Connection Server and click ‘Edit’ at the bottom of the page
9. A new pane will appear, there will be a section labeled ‘VMware Horizon View Monitoring’ in this section please do the following:
   1. In the ‘User Name’ and ‘Password’ fields, please enter the credentials for the Read Only Admin Service account for VMware Horizon in the format of 'domain\user'
   2. Check the box for ‘Enable Application/Desktop and VDI Monitoring’
   3.
10. Once all information is filled in, click the ‘Save’ button to complete the configuration
11. Now that the authentication information is saved, you’ll need to update the agent on the connection server in order for the API Modules to be installed
    1. At the bottom of the page, click the ‘Manage Agents’
    2. Select the VMware Horizon Connection Servers in which you enable the integration on in step 9.
    3. Click the ‘Install/Update Agents’ bottom at the bottom of the screen.
    4. The agent update process may take about 2-4 minutes to complete. You will be prompted when the installation/update is complete.
    5. Once the installation is complete, click the ‘Close’ button to return to the Inventory page.
12. Once the new agent is deployed to the Connection Server, the API Modules will begin to enable Horizon Monitoring
    1. It may take about 5 minutes or so before the data will appear.

Post Configuration: What’s Next?

Now that VMware Horizon monitoring has been enabled in Goliath Performance Monitor, to start viewing session data go to the 'View>VMware Horizon' page of the technology.
